DIP / SMD 3-75W

Cincon은 업계 표준 및 핀 배열을 갖춘 3W에서 75W 범위의 DC/DC DIP 컨버터를 설계 및 제조합니다. 주요 특징으로는 고효율, 높은 작동 온도 및 넓은 입력 범위가 있습니다.

Cincon은 또한 다양한 애플리케이션을 위한 비절연형 및 고절연형 DC/DC 컨버터를 제공합니다.

Cincon DIP 컨버터 소개

DIP DC-DC 컨버터의 경우, 6W~10W의 DIP16, 3W~15W의 DIP24 또는 SMD24 패키지, 10W~30W의 1"x1" 패키지, 10W~75W의 2"x1" 패키지, 15W~40W의 2"x1.6" 및 2"x2" 패키지 등 다양한 패키지가 있습니다. 30년 이상의 R&D 경험을 바탕으로 Cincon은 철도, 산업, ITE, 5G 통신, 의료 및 가전용 애플리케이션에 전문성을 갖추고 있습니다.

산업용 애플리케이션의 경우, 모든 DIP DC-DC 컨버터가 산업 용도에 적합하게 설계되었습니다.

철도 애플리케이션의 경우, DIP24 8W 및 10W, 2"x1" 패키지 20W 및 40W와 같은 EN 50155 규격 충족(compliant) DIP 컨버터가 있습니다. 또한, Cincon은 애플리케이션 시스템의 더 다양한 분산 전압(distributed voltages)을 커버할 수 있는 2"x1", 20W, 18:1 초광폭 입력 범위 DC-DC 컨버터도 제공합니다.

Cincon은 고객이 선택할 수 있도록 EN50155 규격을 충족하도록 설계된(designed to meet) 더 많은 DIP 컨버터 제품 라인업을 보유하고 있습니다.

18:1 Input Range

모델	전력	입력 전압	출력 전압	특징	치수 (inch)	재고 조회	RFQ (견적 요청)
EC7AW18	10W	8.5~160V	5V, 12V, 15V, ±5V, ±12V, ±15V	3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	1.25x0.80x0.50(DIP24)	Stock	RFQ
EC7BW18	20W	8.5~160V	5V, 12V, 15V, ±12V, ±15V, ±24V	3KVac Isolation UL62368-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)	Stock	RFQ
ECB40W18	40W	8.5~160V	5V, 12V, 15V, 24V, 48V, 54V	3KVac Isolation UL62368-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.50(DIP)	Stock	RFQ

10:1 Input Range

	모델	전력	입력 전압	출력 전압	특징	치수 (inch)	재고 조회	RFQ (견적 요청)
NEW	DH15W10	15W	150~1500V	5V, 12V, 15V, 24V	4KVac Isolation UL1741, EN62109-1	3.00x2.00x0.984(P) 4.81x2.26x1.260(ST) 4.81x2.26x1.713(DR)	Stock	RFQ
NEW	DH30W10	30W	150~1500V	12V, 15V, 24V, 48V	4KVac Isolation UL1741, EN62109-1	3.50x2.50x0.984(P) 5.31x2.76x1.260(ST) 5.31x2.76x1.713(DR)	Stock	RFQ
NEW	DH45W10	45W	150~1500V	12V, 15V, 24V, 48V	4KVac Isolation UL1741, EN62109-1	3.50x2.50x0.984(P) 5.31x2.76x1.260(ST) 5.31x2.76x1.713(DR)	Stock	RFQ

8:1 Input Range

		모델	전력	입력 전압	출력 전압	특징	치수 (inch)	데이터시트	재고 조회	RFQ (견적 요청)
NEW		EC3AW8	1.98~3W	9~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	3KVDC Isolation EN55032 Class A 5000m Operating Altitude	1.25x0.80x0.40(DIP24)		Stock	RFQ
NEW		EC4AW8	3.96~6W	9~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	3KVDC Isolation EN55032 Class A 5000m Operating Altitude	1.25x0.80x0.40(DIP24)		Stock	RFQ

4:1 Input Range

	모델	전력	입력 전압	출력 전압	특징	치수 (inch)	재고 조회	RFQ (견적 요청)
	EC3AW	3W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)	Stock	RFQ
NEW	EC4DAW	6W	9~36V, 18~74V	3.3V, 5V, 12V, 15V, ±12V, ±15V	3KVDC Isolation	0.95x0.54x0.39(DIP16)	Stock	RFQ
	EC4AW	6W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)	Stock	RFQ
	EC6AW	8W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN50155 Compliant	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)	Stock	RFQ
	EC5DAW	10W	9~36V, 18~74V	3.3V, 5V, 12V, 15V, ±12V, ±15V	3KVDC Isolation	0.95x0.54x0.39(DIP16)	Stock	RFQ
	EC2SBW	10W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)	Stock	RFQ
	EC2SBW-H	10W	9~36V, 18~74V	3.3V, 5V, 12V, 15V, ±12V, ±15V	3KVdc Isolation M2 grade option	1.00x1.00x0.40(DIP)	Stock	RFQ
	EC7AW	10W	9~36V, 18~74V	3.3V, 5V, 12V, 15V, ±12V, ±15V	3KVDC Isolation EN55032 Class A	1.25x0.80x0.40(DIP24)	Stock	RFQ
	EC6AW-110	10W	43~160V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	1.25x0.80x0.50(DIP24)	Stock	RFQ
	EC4BW	10W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500Vdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)	Stock	RFQ
	EC3SBW	15W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V, ±5V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)	Stock	RFQ
	EC8AW	15W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation EN55032 Class A	1.25x0.80x0.40(DIP24)	Stock	RFQ
	EC5BW	15W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V, ±5V	1.5KVdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)	Stock	RFQ
	EC5C	15W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V, 5/±12V, 5/±15V	500Vdc Isolation EN60950-1	2.00x2.00x0.40(DIP)	Stock	RFQ
	EC4SBW	20W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)	Stock	RFQ
	EC7BW-110	20W	43~160V	5V, 12V, 15V, ±12V, ±15V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)	Stock	RFQ
	EC7BW	20W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)	Stock	RFQ
	EC1SC	20W	9~36V, 18~72V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	EN55022 Class A	2.00×1.60×0.45(DIP)	Stock	RFQ
	EC5SBW	30W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation UL62368-1 M2 grade option	1.00x1.00x0.40(DIP)	Stock	RFQ
	EC9BW	30W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation	2.00x1.00x0.40(DIP)	Stock	RFQ
NRND	EC3SCW	30W	9~36V, 18~75V	3.3V, 5V, 12V, 15V	1.5KVdc Isolation EN60950-1	2.00×1.60×0.40(DIP)	Stock	RFQ
	ECLB40W	40W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)	Stock	RFQ
	ECLB40W-110	40W	43~160V	3.3V, 5V, 12V, 15V, ±12V, ±15V, ±24V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.05x1.20x0.40(DIP)	Stock	RFQ
	ECLB60W	60W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts M2 grade option	2.05x1.20x0.40(DIP)	Stock	RFQ
	ECLB75W	75W	9~36V, 18~75V	5V, 12V, 15V, ±12V, ±15V, ±24V	2.25KVdc Isolation With Mounting Inserts M2 grade option	2.05x1.20x0.40(DIP)	Stock	RFQ

2:1 Input Range

	모델	전력	입력 전압	출력 전압	특징	치수 (inch)	재고 조회	RFQ (견적 요청)
	EC3A	3W	4.5~6V, 9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)	Stock	RFQ

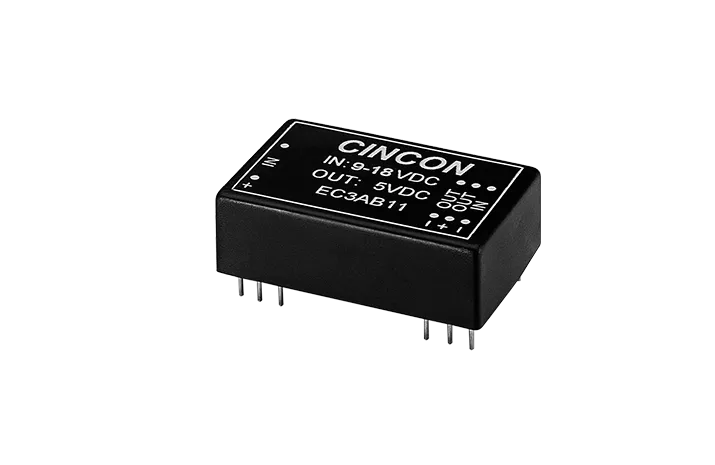

	EC3AB	3W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55022 Class B UL60950-1	1.25x0.80x0.50(DIP24) 1.25x0.80x0.55(SMD24)	Stock	RFQ
	EC3A-E	3W	4.5~9V, 9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55032 Class A UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24) 1.25×0.80x0.41(SMD24)	Stock	RFQ
	EC4A	6W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)	Stock	RFQ

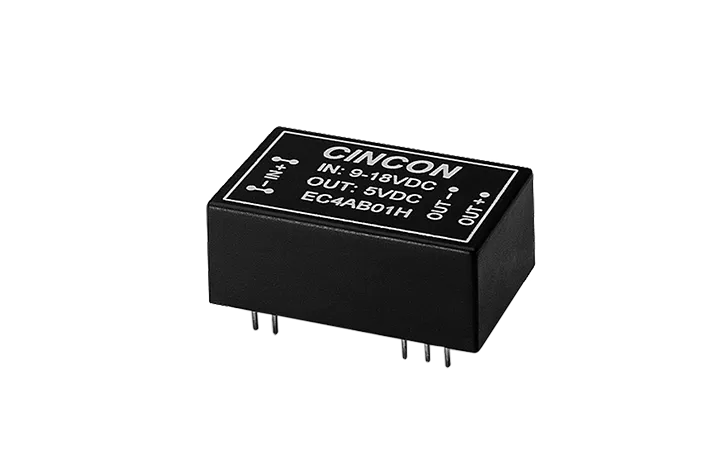

	EC4AB	6W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55022 Class B UL60950-1	1.25x0.80x0.50(DIP24) 1.25x0.80x0.55(SMD24)	Stock	RFQ
	EC4A-E	6W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55032 Class A UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24) 1.25×0.80x0.41(SMD24)	Stock	RFQ
	EC6A	7.5W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)	Stock	RFQ
	EC2SB	10W	4.7~9V, 9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP) 1.00x1.00x0.36(SMD)	Stock	RFQ
	EC7A	10W	9~18V, 18~36V, 36~75V	2.5V, 3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)	Stock	RFQ
	EC4BU	10W	4.7~9V, 9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)	Stock	RFQ

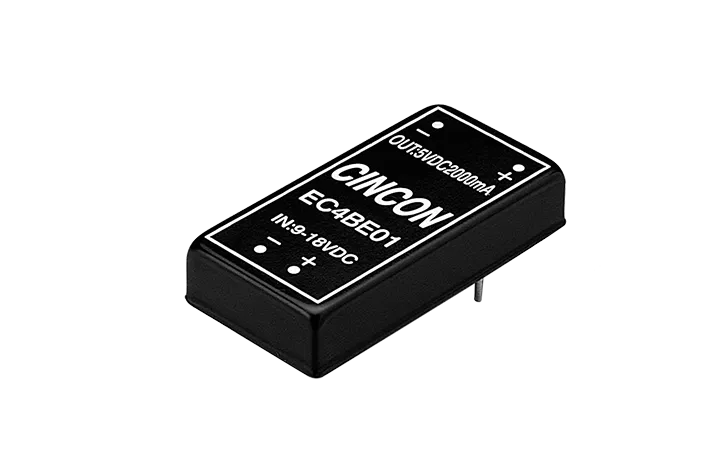

	EC4BE	10W	9~18V, 18~36V, 36~72V	5V, 12V, 15V, ±5V, ±12V, ±15V	500Vdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)	Stock	RFQ
	EC3SB	15W	9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP) 1.00x1.00x0.36(SMD)	Stock	RFQ
	EC5BU	15W	9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)	Stock	RFQ

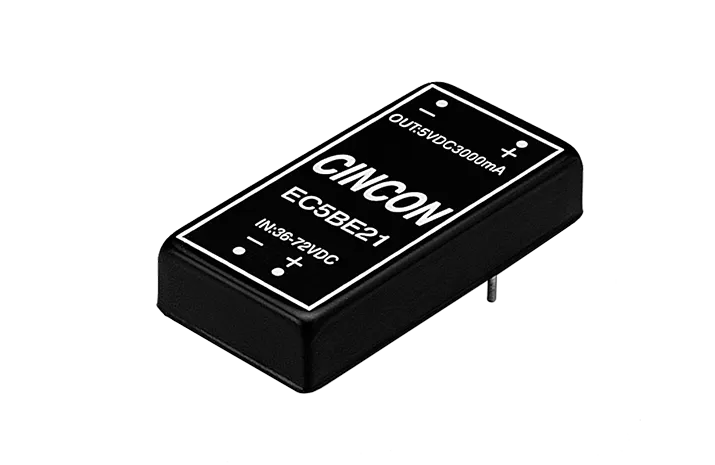

	EC5BE	15W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500Vdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)	Stock	RFQ
NRND	EC3C	15W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500Vdc Isolation	2.00x2.00x0.40(DIP)	Stock	RFQ

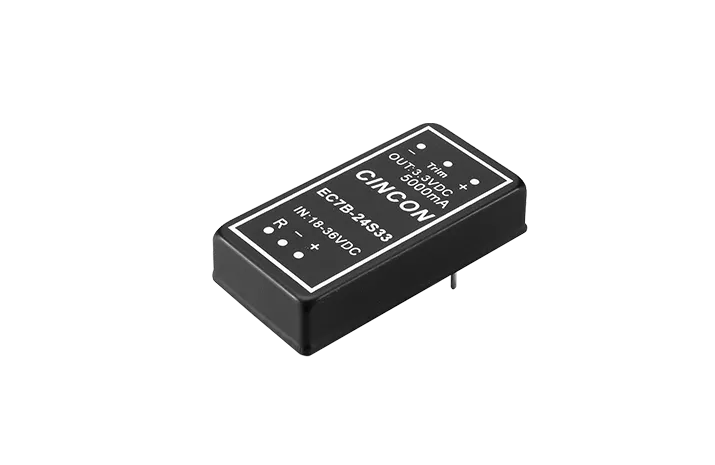

	EC7B	20W	18~36V, 36~75V, 9~18V	1.8V, 2.5V, 3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation	2.00x1.00x0.40(DIP)	Stock	RFQ

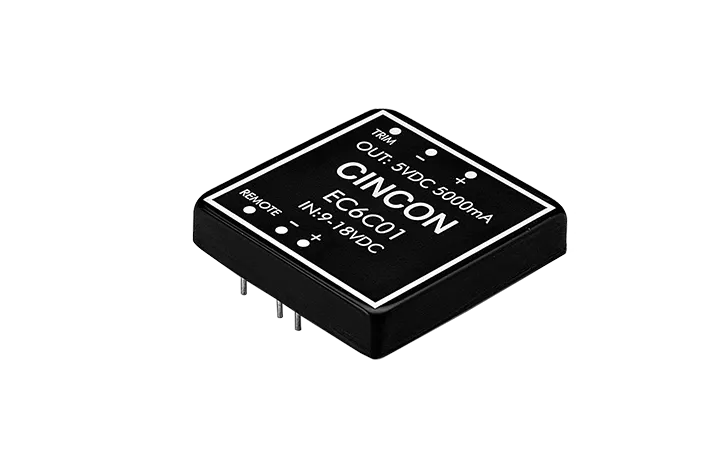

	EC6C	30W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V, 5/±12V, 5/±15V	500Vdc Isolation EN60950-1	2.00x2.00x0.40(DIP)	Stock	RFQ

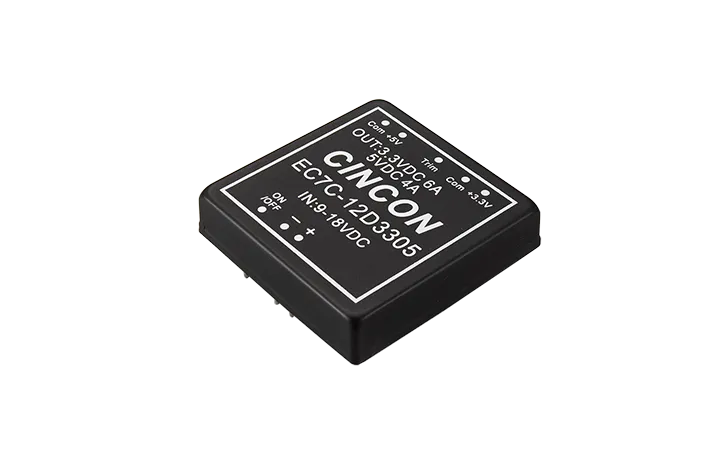

	EC7C	40W	9~18V, 18~36V, 36~75V	2.5V, 3.3V, 5V, 12V, 15V, 3.3/5V, ±12V, ±15V, 3.3/±12V, 3.3/±15V, 5/±12V, 5/±15V	1.5KVdc Isolation EN60950-1	2.00x2.00x0.40(DIP)	Stock	RFQ

High Isolation 6KV

		모델	전력	입력 전압	출력 전압	특징	치수 (inch)	데이터시트	재고 조회	RFQ (견적 요청)
		EC4AW-H6	6W	9~36V, 18~72V	5V, 12V, ±12V, ±15V	6KVdc Isolation Design Meets Reinforced Insulation EN55032 Class A 5uA Leakage Current	1.25x0.80x0.40 (DIP24)		Stock	RFQ

+/-10% Input Range

		모델	전력	입력 전압	출력 전압	특징	치수 (inch)	데이터시트	재고 조회	RFQ (견적 요청)

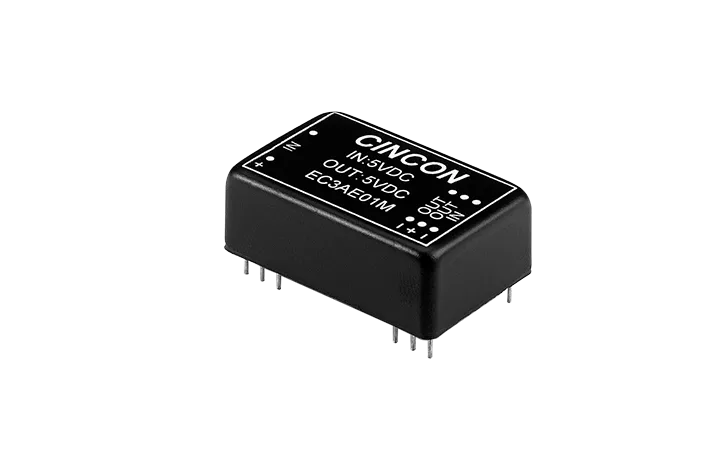

		EC3AE	3W	5V, 12V, 24V, 28V, 48V	5V, 12V, 15V, ±12V, ±15V		1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)		Stock	RFQ
